Specifications

Design: Mono tube design

Body: Front coilover & rear smooth body, seamless steel, internal & external polished and honed,

Body Plating: Environment friendly white zinc-galvanized surface,

Components: CNC machined 6061 aluminum alloy

Tube: German Continental brand oil hose, maximum pressure 22.4MPA

Valving: Tunable, velocity sensitive deburred valve shims

Seal: Japan NOK twin-lips main oil seal (same with KYB OEM shock absorbers)wiper seal and scraper seal

Oil: German FUCHS brand shock oil (freezing point lower than-53 ˚),Advanced suspension fluid for improved performance at variable temperatures.

Piston Rod: 18 mm diameter, hard chrome plated, heat-treated

Piston Rings: PFTE materials

Bearing: Spherical, PFTE-lined, heat-treated alloy steel

2.25 Sub-tank /REMOTE RESERVOIR

Body: 6061 aluminum alloy, with heat dissipation system

Lubricant: Japan made lubricant oil

Piston: High or low flow piston

Adjustor: CNC machined aluminum

Charge inlet: Only specialist allowed operating the nitrogen releasing and charging

PARAMETERS:

Diameter of body: 2.25/2.5/3.0 inches available

Lift: 0/1/2/3/4 inches lift available

Adjust: Compression 8/12 steps adjust+rebound 6 steps adjust

Colors: red, yellow, green, pink, purple, black available

APPLICATION:

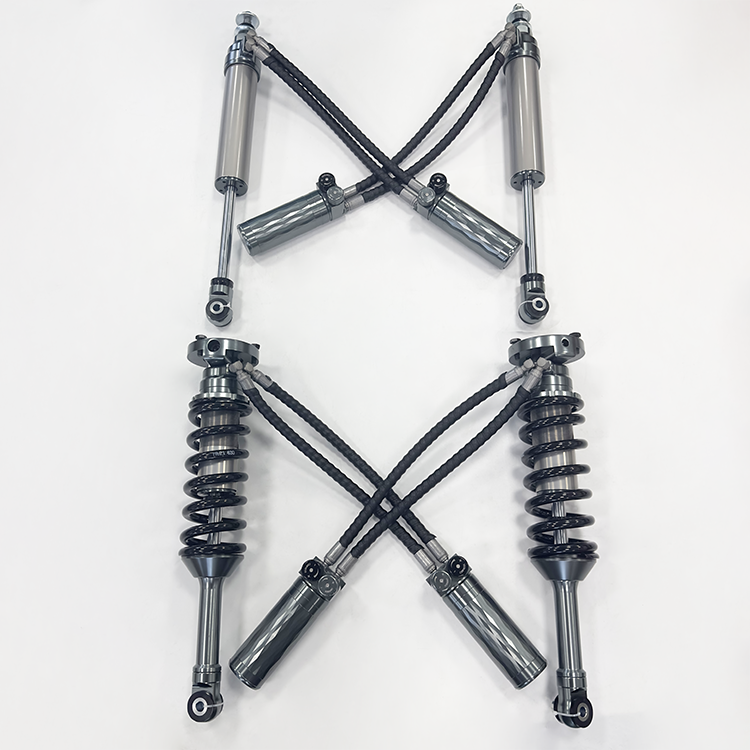

Mitsubishi Pajero V73 V93 V97

Payment terms: TT or negotiable

MOQ: 1 set

Delivery time: 7-15 days after receiving the payment
